GPS L1 Antenna

zoom

GPS L1 Antenna

Frequency Range : 1575.42 MHz to 1575.42 MHz
Part Number : S67-1575-49
GPS L1 Antenna

S67-1575-49: L1 passive GPS antenna operating at 1575.42 MHz. The spherical radius molded radome provides enhanced protection against rain, ice and lightning strikes. It features a 40 dB gain preamplifier/filter assembly. The antenna is ideal for airborne, marine, ground vehicles, and manpack installation.

NSN: 5985-01-441-5347 (white); 5985-01-603-4386 (green)

FEDERAL & MILITARY: FAA TSO-C129, DO-160C, MIL-5541, MIL-E-5400, AND MIL-STD-810.

Click Here for Data Sheet

Description

S67-1575-49: L1 passive GPS antenna operating at 1575.42 MHz. The spherical radius molded radome provides enhanced protection against rain, ice and lightning strikes. It features a 40 dB gain preamplifier/filter assembly. The antenna is ideal for airborne, marine, ground vehicles, and manpack installation.

NSN: 5985-01-441-5347 (white); 5985-01-603-4386 (green)

FEDERAL & MILITARY: FAA TSO-C129, DO-160C, MIL-5541, MIL-E-5400, AND MIL-STD-810.

Click Here for Data Sheet

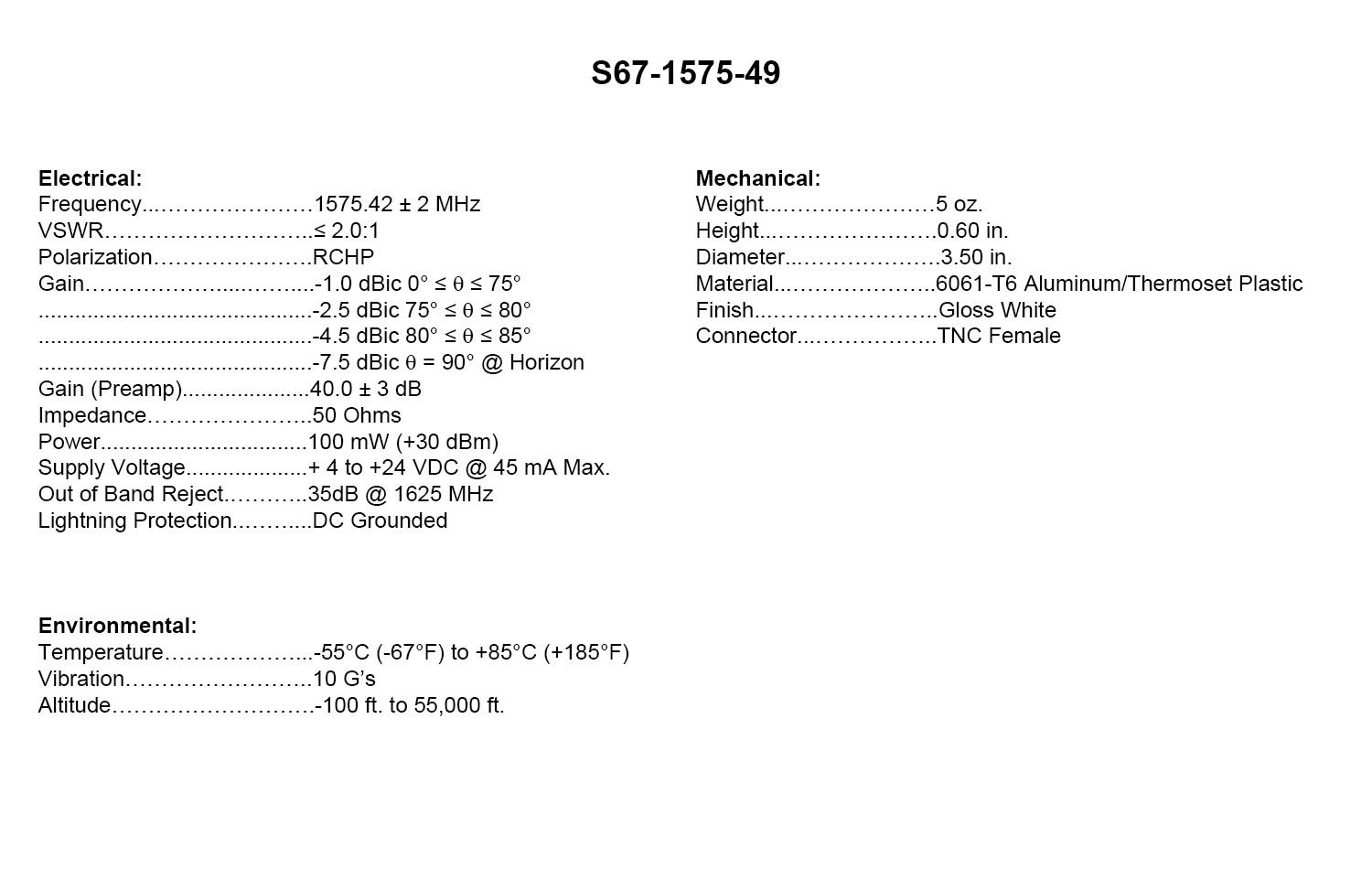

Specifications

Outline Drawings
Performance
