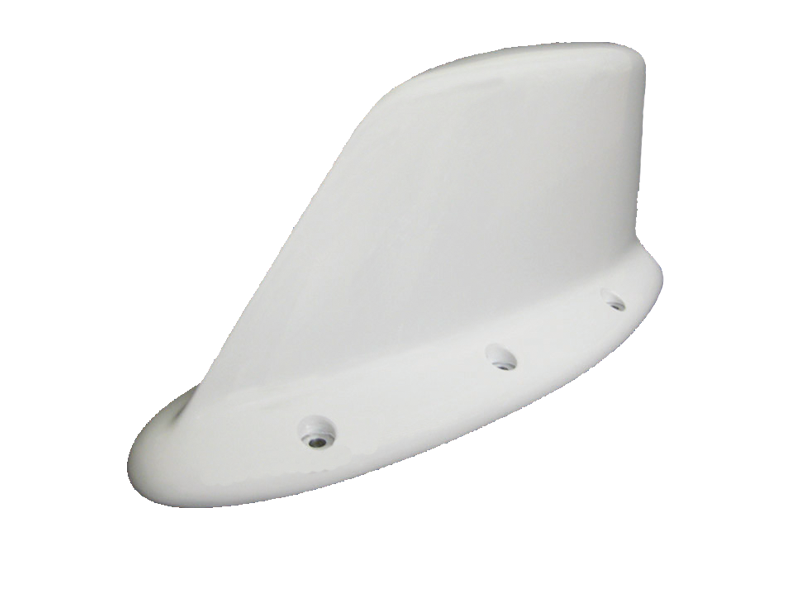

Inmarsat AERO/Iridium Antenna

zoom

Inmarsat AERO/Iridium Antenna

Frequency Range : 1530 MHz to 1660.5 MHz
Part Number : S65-8282-101
Inmarsat AERO/Iridium Antenna

S65-8282-101: Low-gain Satcom antenna covering lnmarsat frequency range of 1530 to 1559 MHz and 1625.5 to 1660.5 MHz, designed to meet SB200 Class 15 service. The broad-band coverage of the antenna also includes frequencies of 1616 to 1626.5 MHz for Iridium Satelite Services voice and data applications. The unit provides over 90% sky coverage.
Small, lightweight, low-drag antenna is hermetically sealed.
The antenna is approved for lnmarsat Aero-Land Aero-C
(store-and-forward) applications. May be used as a back-up antenna for the high-gain ARINC 741 antenna.
The S65-8282-101 is also approved as Iridium Compatible Equipment (ICE).
NSN: 5985-01-457-5077
Federal & Military Certifications: FAA PMA, DO-160D, MIL-
HDBK-5400T, MIL-STD-810D, TSO C132 AND TSO C159a.

Click Here for Data Sheet

Description

S65-8282-101: Low-gain Satcom antenna covering lnmarsat frequency range of 1530 to 1559 MHz and 1625.5 to 1660.5 MHz, designed to meet SB200 Class 15 service. The broad-band coverage of the antenna also includes frequencies of 1616 to 1626.5 MHz for Iridium Satelite Services voice and data applications. The unit provides over 90% sky coverage.
Small, lightweight, low-drag antenna is hermetically sealed.
The antenna is approved for lnmarsat Aero-Land Aero-C
(store-and-forward) applications. May be used as a back-up antenna for the high-gain ARINC 741 antenna.
The S65-8282-101 is also approved as Iridium Compatible Equipment (ICE).
NSN: 5985-01-457-5077
Federal & Military Certifications: FAA PMA, DO-160D, MIL-
HDBK-5400T, MIL-STD-810D, TSO C132 AND TSO C159a.

Click Here for Data Sheet

Specifications

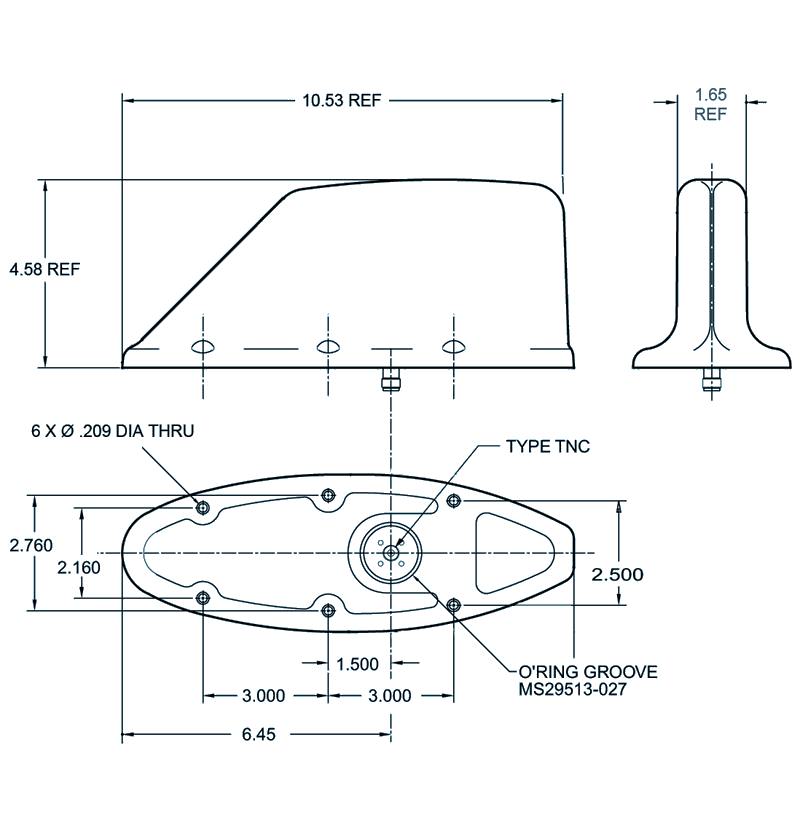

Outline Drawings
Performance
