L-Band Antenna

zoom

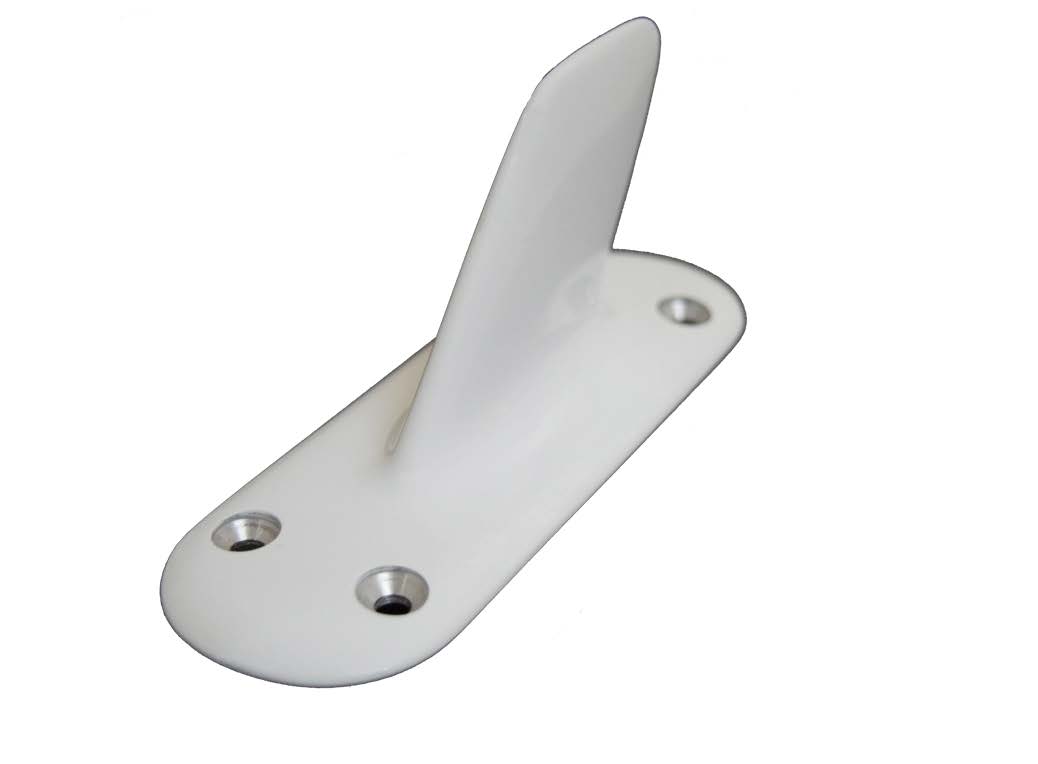

L-Band Antenna

Frequency Range : 960 MHz to 1220 MHz
Part Number : S65-5366-7L
L-Band Antenna

S65-5366-7L: Vertically-polarized, omni-directional L-Band antenna operating from 960 to 1220 MHz for use with transponders, DME, ATC, IFF, TACAN and Mode-S applications. Rugged design is an all-metal aluminum casting with a 4-hole bolt pattern. The antenna is DC-grounded and hermetically-sealed for long service life. Type C female connector and o-ring seal.

NSN: 5985-01-082-8282

FEDERAL & MILITARY SPECS: TSO C66b, C74c,  C112 & C119, MIL-E-5400H, MIL-E-5272C, MIL-A-7772B, MIL-A-25708A, MIL-A-25730B, MIL-STD-810B, MIL-STD-8C.

Click Here for Data Sheet

Description

S65-5366-7L: Vertically-polarized, omni-directional L-Band antenna operating from 960 to 1220 MHz for use with transponders, DME, ATC, IFF, TACAN and Mode-S applications. Rugged design is an all-metal aluminum casting with a 4-hole bolt pattern. The antenna is DC-grounded and hermetically-sealed for long service life. Type C female connector and o-ring seal.

NSN: 5985-01-082-8282

FEDERAL & MILITARY SPECS: TSO C66b, C74c,  C112 & C119, MIL-E-5400H, MIL-E-5272C, MIL-A-7772B, MIL-A-25708A, MIL-A-25730B, MIL-STD-810B, MIL-STD-8C.

Click Here for Data Sheet

Specifications

Outline Drawings
Performance
