Marker Beacon Antenna

zoom

Marker Beacon Antenna

Frequency Range : 75 MHz
Part Number : S35-3000-14
Marker Beacon Antenna

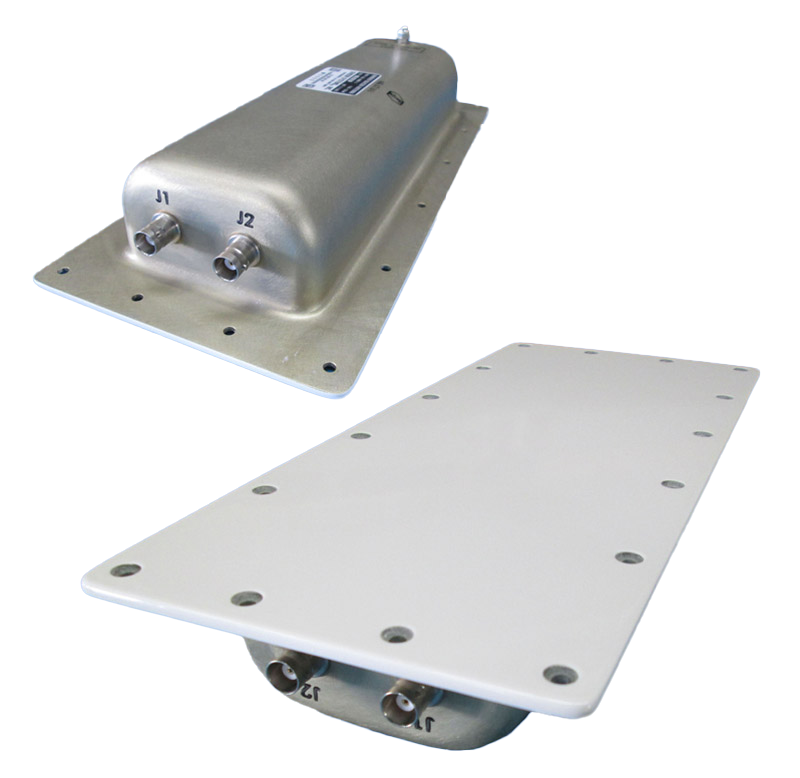

This flush-mounted marker beacon antenna operates at 75 MHz. The antenna is fabricated from a one piece drawn aluminum can and is foam filled with an epoxy glass radome.

The S35-3000-14 antenna is DC grounded to protect from lightning and is hermetically sealed for a long service life. The two side-mounted BNC connectors eliminates the need for a splitter in double marker beacon installations. The antenna is interchangeable with the Comant CI-165.

Federal & Military Certifications:
DO-143, DO-160G and MIL-STD-810D.

Click Here for Data Sheet

Description

This flush-mounted marker beacon antenna operates at 75 MHz. The antenna is fabricated from a one piece drawn aluminum can and is foam filled with an epoxy glass radome.

The S35-3000-14 antenna is DC grounded to protect from lightning and is hermetically sealed for a long service life. The two side-mounted BNC connectors eliminates the need for a splitter in double marker beacon installations. The antenna is interchangeable with the Comant CI-165.

Federal & Military Certifications:
DO-143, DO-160G and MIL-STD-810D.

Click Here for Data Sheet

Specifications

Outline Drawings
Performance
