UHF/VHF Antenna

zoom

UHF/VHF Antenna

Frequency Range : 116 MHz to 400 MHz
Part Number : S65-8262-305
UHF/VHF Antenna

S65-8262-305: All metal, DC grounded to provide lightning protection. Eliminates “P” static. Broadband frequencies. Combines VHF/UHF 116-152/225-400 MHz communication in a single antenna. Meets AT-1108 specs. Hermetically sealed. For turbine powered aircraft.

NSN: 5895-01-411-9139

FEDERAL AND MILITARY SPECS: FAA TSO C37b, C38b and C59. MIL-E-5400, MIL-A-7772(ASG), MIL-A-9094C, MIL-E-E5272C, MIL-A-A6271A.

Click Here for Data Sheet

s65-8262-305-specs

Description

S65-8262-305: All metal, DC grounded to provide lightning protection. Eliminates “P” static. Broadband frequencies. Combines VHF/UHF 116-152/225-400 MHz communication in a single antenna. Meets AT-1108 specs. Hermetically sealed. For turbine powered aircraft.

NSN: 5895-01-411-9139

FEDERAL AND MILITARY SPECS: FAA TSO C37b, C38b and C59. MIL-E-5400, MIL-A-7772(ASG), MIL-A-9094C, MIL-E-E5272C, MIL-A-A6271A.

Click Here for Data Sheet

Specifications

s65-8262-305-specs

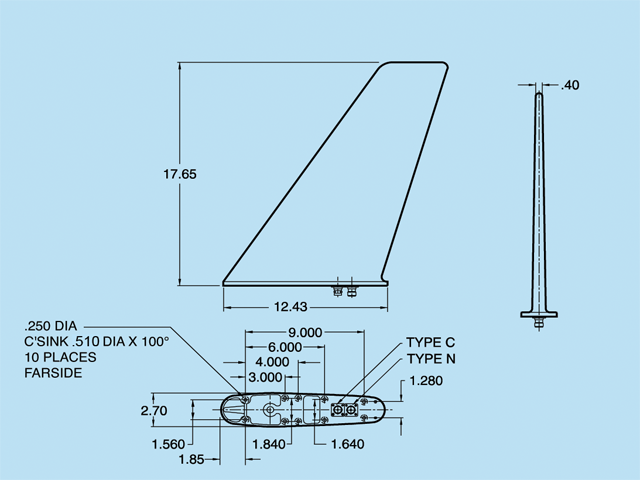

Outline Drawings
Performance
