GPS L1/L2 Antenna

Frequency Range : 1217 MHz to 1585 MHz
Part Number : S67-1575-96
GPS L1/L2 Antenna

This dual-band L1/L2 active GPS antenna provides low-noise coverage at 1227.6 MHz and 1575.42 MHz with a VSWR of 2.0:1 and 40 dB gain LNA. The antenna requires +4 to +24 VDC.
The S67-1575-96’s amplifier is integrated under the radome. Additional filtering provides significant out-of-band rejection and reduced possibility of saturation by non-GPS signals. DC bias is provided via the coax connector.
Federal & Military Certifications:
FAA TSO C129, DO-160C, MIL-E-5400, MIL-STD-810 and AMS-C-5541.

Click Here for Data Sheet

Description

This dual-band L1/L2 active GPS antenna provides low-noise coverage at 1227.6 MHz and 1575.42 MHz with a VSWR of 2.0:1 and 40 dB gain LNA. The antenna requires +4 to +24 VDC.
The S67-1575-96’s amplifier is integrated under the radome. Additional filtering provides significant out-of-band rejection and reduced possibility of saturation by non-GPS signals. DC bias is provided via the coax connector.
Federal & Military Certifications:
FAA TSO C129, DO-160C, MIL-E-5400, MIL-STD-810 and AMS-C-5541.

Click Here for Data Sheet

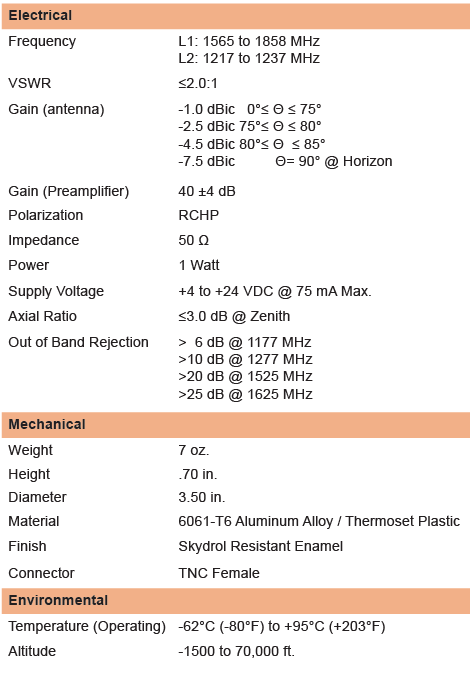

Specifications

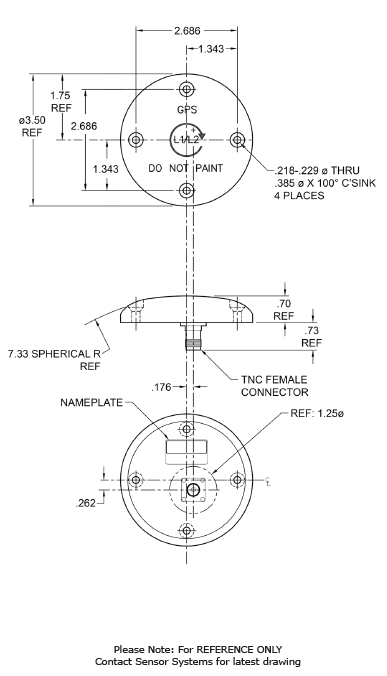

Outline Drawings
Performance
