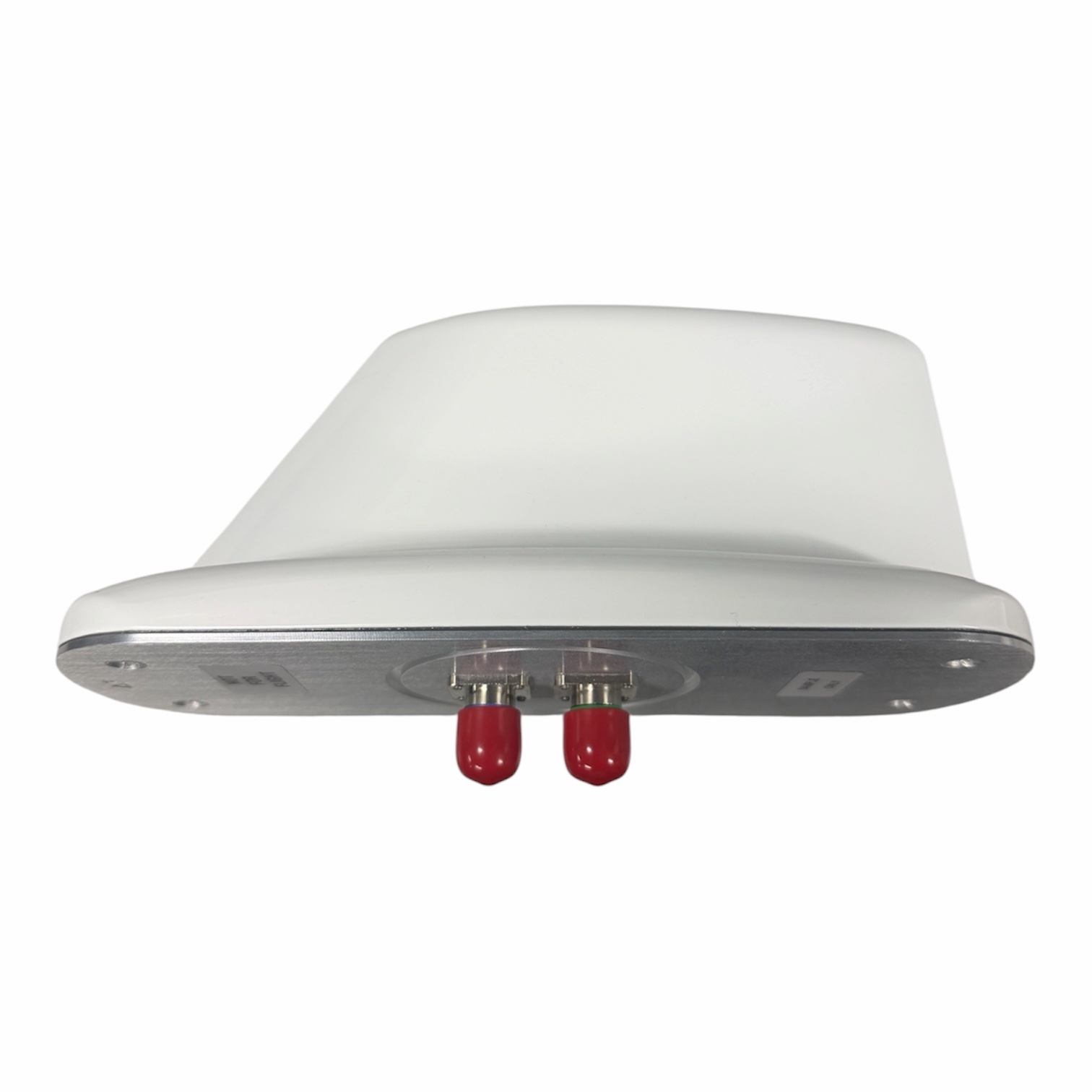

5G/LTE 2×2 MIMO Antenna

zoom

5G/LTE 2×2 MIMO Antenna

Frequency Range : 617 MHz to 5926 MHz
Part Number : S65-5366-748
5G/LTE 2x2 MIMO Antenna

The Sensor Systems 5G/LTE 2×2 MIMO antenna is a low-profile, dual-element aircraft antenna designed to provide broadband wireless connectivity for commercial, business, and special-mission aircraft. The antenna supports modern 4G LTE and 5G cellular networks, while its 2×2 MIMO architecture provides two independent RF paths to improve wireless throughput, coverage, and connection reliability.

The low-profile aerodynamic design minimizes aircraft installation impact while providing a rugged platform suitable for airborne applications. The antenna is designed for operation from -55°C to +85°C and up to 55,000 ft, and is designed to DO-160G and MIL-HDBK-5400 environmental requirements.



Description

The Sensor Systems 5G/LTE 2×2 MIMO antenna is a low-profile, dual-element aircraft antenna designed to provide broadband wireless connectivity for commercial, business, and special-mission aircraft. The antenna supports modern 4G LTE and 5G cellular networks, while its 2×2 MIMO architecture provides two independent RF paths to improve wireless throughput, coverage, and connection reliability.

The low-profile aerodynamic design minimizes aircraft installation impact while providing a rugged platform suitable for airborne applications. The antenna is designed for operation from -55°C to +85°C and up to 55,000 ft, and is designed to DO-160G and MIL-HDBK-5400 environmental requirements.

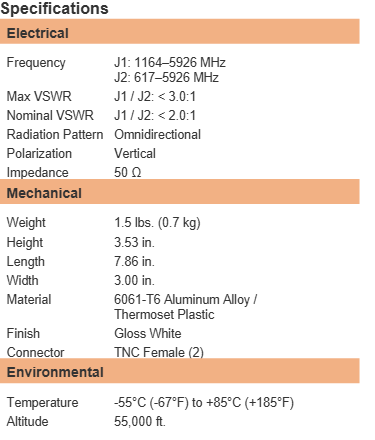

Specifications

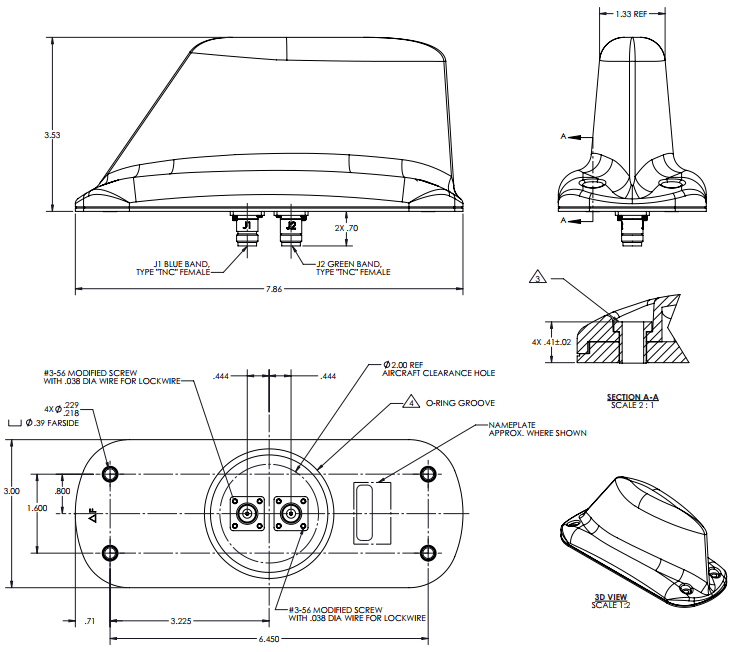

Outline Drawings
Performance
