ADF Antenna

zoom

ADF Antenna

Frequency Range : 0.19 MHz to 1.75 MHz
Part Number : S72-1712-10
ADF Sense Loop Antenna

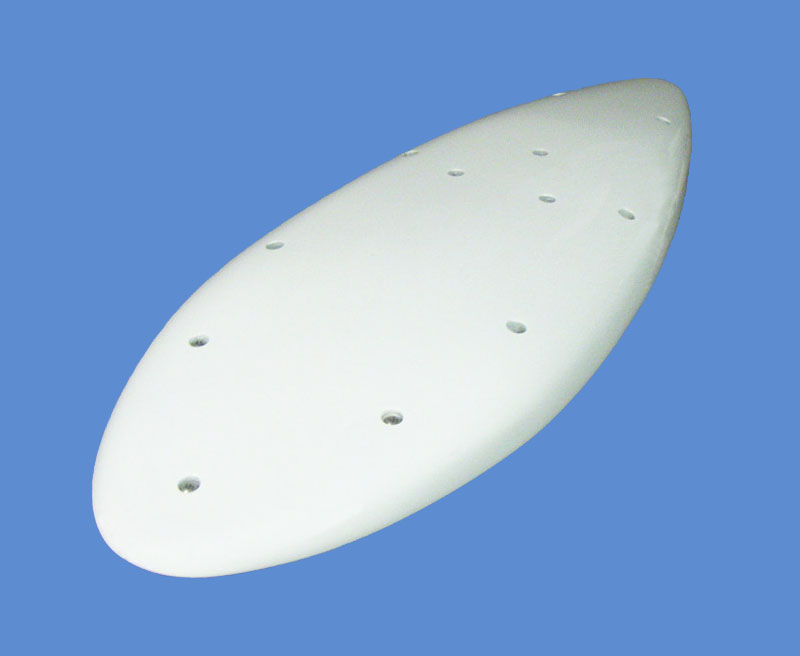

S72-1712-10: The ADF ARINC 712 digital receiver uses a combined loop/sense antenna for operation with the digital ADF receiver incorporated in the shell. A test loop feature is provided on pin numbers 15 & 16. The ferrite loop is a unique rugged design that provides repeatable bearing accuracy. Compatible with Allied Signal and Collins ARINC 712 specs. The baseplate radius is 118.5 inches for MD-11 installations.

FEDERAL & MILITARY SPECS:  ARINC-712, DO-160A, MIL-E-5400, FAA TSO-C41c.

Click Here for Data Sheet!

Description

S72-1712-10: The ADF ARINC 712 digital receiver uses a combined loop/sense antenna for operation with the digital ADF receiver incorporated in the shell. A test loop feature is provided on pin numbers 15 & 16. The ferrite loop is a unique rugged design that provides repeatable bearing accuracy. Compatible with Allied Signal and Collins ARINC 712 specs. The baseplate radius is 118.5 inches for MD-11 installations.

FEDERAL & MILITARY SPECS:  ARINC-712, DO-160A, MIL-E-5400, FAA TSO-C41c.

Click Here for Data Sheet!

Specifications

Outline Drawings
Performance
