ELT Antenna

zoom

ELT Antenna

Frequency Range : 121.5 MHz to 406 MHz
Part Number : S65-1231
COSPAS-SARSAT certified ELT Antenna

S65-1231: This all-aluminum Cospas/Sarsat approved ELT antenna covers 406, 121.5 and 243.0 MHz distress signal frequencies. The antenna is designed for high-speed aircraft.

The lightweight and low drag blade antenna is specially designed to cater to the needs of high-speed aircraft. The S65-1231 antenna is built with a rugged construction

The antenna comes equipped with a BNC female connector, and designed to be compatible with multiple radio systems.. The S65-1231 is a direct replacement for existing ELT blade-style antennas and conforms to the original equipment’s form, fit and function specifications.

Federal & Military Certifications:
TSO C91A, C126, DO-160D/G, DO-204A, MIL-A-9094, MIL-B-5087, MIL-HDBK-5400, MIL-STD-810B/D, and SAE ARP5416.

Click Here for Data Sheet

Description

S65-1231: This all-aluminum Cospas/Sarsat approved ELT antenna covers 406, 121.5 and 243.0 MHz distress signal frequencies. The antenna is designed for high-speed aircraft.

The lightweight and low drag blade antenna is specially designed to cater to the needs of high-speed aircraft. The S65-1231 antenna is built with a rugged construction

The antenna comes equipped with a BNC female connector, and designed to be compatible with multiple radio systems.. The S65-1231 is a direct replacement for existing ELT blade-style antennas and conforms to the original equipment’s form, fit and function specifications.

Federal & Military Certifications:
TSO C91A, C126, DO-160D/G, DO-204A, MIL-A-9094, MIL-B-5087, MIL-HDBK-5400, MIL-STD-810B/D, and SAE ARP5416.

Click Here for Data Sheet

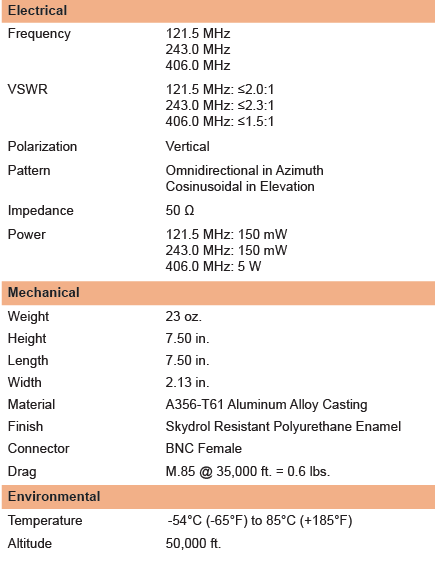

Specifications

Outline Drawings
Performance
