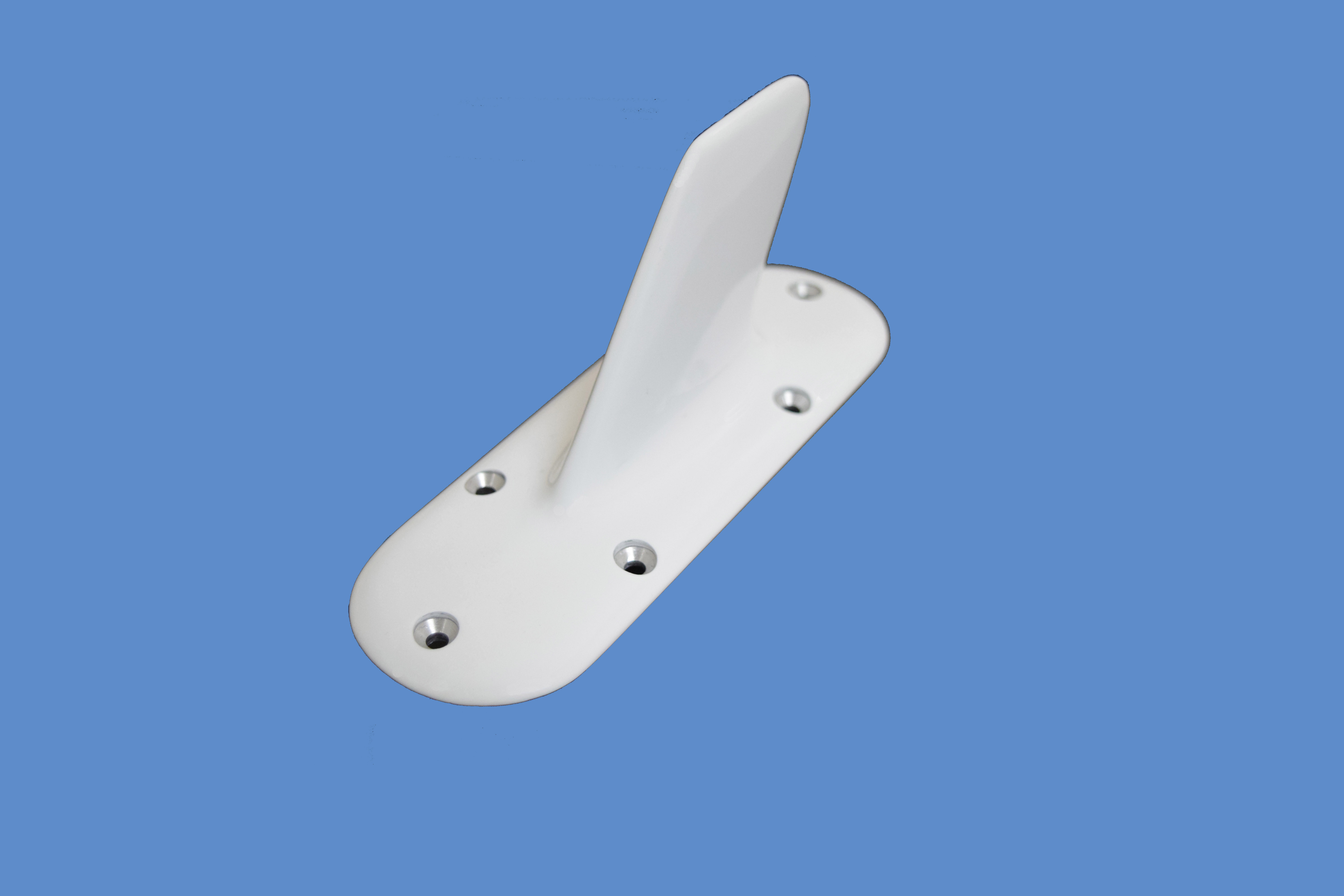

L-Band Antenna

Frequency Range : 960 MHz to 1220 MHz
Part Number : S65-5366-119L
L-Band Antenna

S65-5366-119L: This rugged and highly efficient L-band antenna is used with transponder, DME, ATC, IFF, TACAN and Mode-S applications. The antenna is constructed from an all-metal stainless steel casting.

The S65-5366-119L antenna is hermetically sealed for a long service life and is DC grounded. The antenna features a 6-hole bolt pattern with a type N female connector and o-ring seal.

Federal & Military Certifications:
FAA TSO C66b, C74c, DO-160G, MIL-HDBK-5400 and SAE ARP 5416.

Click Here for Data Sheet

Description

S65-5366-119L: This rugged and highly efficient L-band antenna is used with transponder, DME, ATC, IFF, TACAN and Mode-S applications. The antenna is constructed from an all-metal stainless steel casting.

The S65-5366-119L antenna is hermetically sealed for a long service life and is DC grounded. The antenna features a 6-hole bolt pattern with a type N female connector and o-ring seal.

Federal & Military Certifications:
FAA TSO C66b, C74c, DO-160G, MIL-HDBK-5400 and SAE ARP 5416.

Click Here for Data Sheet

Specifications

Outline Drawings
Performance
