L-Band Antenna

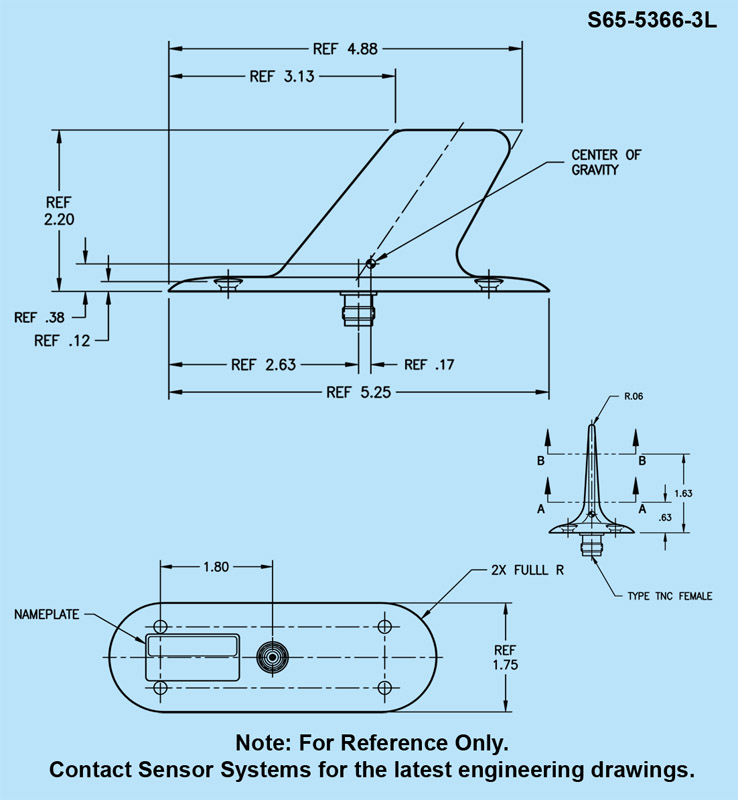

S65-5366-3L: Rugged and highly efficient L-band antenna for use with transponder, DME, ATC, IFF, TACAN and Mode-S applications. The antenna is constructed from an all metal aluminum casting and is DC grounded. It features a 4-hole bolt pattern with a TNC female connector. Ideal for use on commercial, military and general aviation aircraft.
NSN: 5985-01-540-3340
FEDERAL & MILITARY SPECS: FAA TSO C66c, C74d, C112e, DO-160D/G, MIL-STD-810D, SAE ARP5416, Boeing D6-81926(G).
