L1/L2 GPS/FRPA/ M-Code

Frequency Range : 1227 MHz to 1575 MHz
Part Number : S67-1575-714

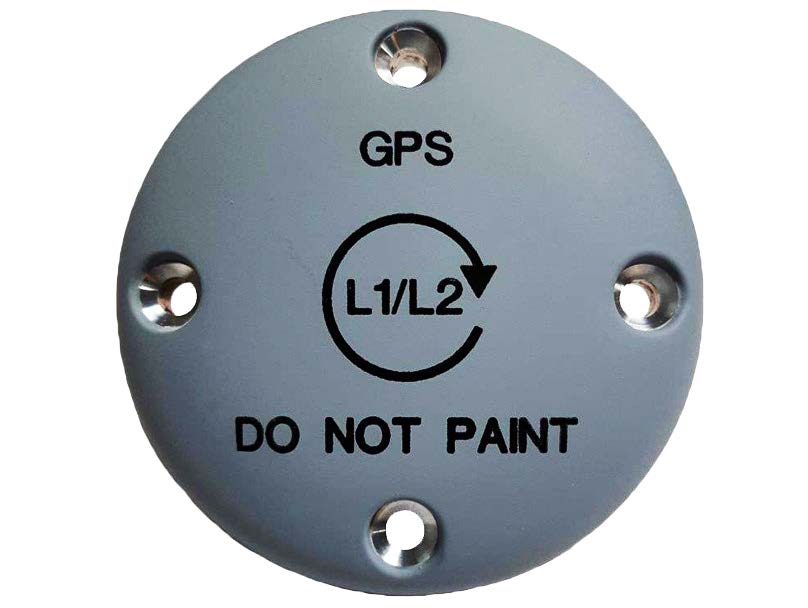

L1/L2 GPS/FRPA/M-Code Antenna

Dual-band L1/L2 passive GPS antenna with a VSWR of 2.0:1. The spherical radius molded radome provides enhanced protection against rain, ice and lightning strikes.

The antenna is qualified for high speed military aircraft and dual frequency surveying applications. The dual band GPS antenna is capable of receiving the M-Code, C/A and Y-Legacy Codes.

FEDERAL & MILITARY SPECS: RTCA DO-160G and DO-228, MIL-HDBK-5400, and SAE ARP5416.

Click Here for Data Sheet

Description

Dual-band L1/L2 passive GPS antenna with a VSWR of 2.0:1. The spherical radius molded radome provides enhanced protection against rain, ice and lightning strikes.

The antenna is qualified for high speed military aircraft and dual frequency surveying applications. The dual band GPS antenna is capable of receiving the M-Code, C/A and Y-Legacy Codes.

FEDERAL & MILITARY SPECS: RTCA DO-160G and DO-228, MIL-HDBK-5400, and SAE ARP5416.

Click Here for Data Sheet

Specifications

Outline Drawings
Performance
