Localizer Antenna

zoom

Localizer Antenna

Frequency Range : 108 MHz to 112 MHz
Part Number : S65-147-7
Localizer

This antenna is manufactured using high-strength aluminum tubing and extrusion, which imparts robustness to the structure. The fiberglass base housing further enhances the durability of the antenna.

The S65-147-7 antenna is designed to radiate a horizontally polarized signal, thereby improving the propagation characteristics. The hermetic sealing ensures that the internal components

are protected from moisture and other environmental contaminants.
This antenna has a proven track record of high reliability and is installed as orignal equipment on Boeing’s 747, 757, 767, 777 and Fokker 100 aircrafts.

Federal & Military Certifications:
TSO C36e, ETSO 2C36f, DO-160E, MIL-E-5272C, MIL-E-5400H, and ARINC Characteristic 547 & 710.

Click Here for Data Sheet

Description

This antenna is manufactured using high-strength aluminum tubing and extrusion, which imparts robustness to the structure. The fiberglass base housing further enhances the durability of the antenna.

The S65-147-7 antenna is designed to radiate a horizontally polarized signal, thereby improving the propagation characteristics. The hermetic sealing ensures that the internal components

are protected from moisture and other environmental contaminants.
This antenna has a proven track record of high reliability and is installed as orignal equipment on Boeing’s 747, 757, 767, 777 and Fokker 100 aircrafts.

Federal & Military Certifications:
TSO C36e, ETSO 2C36f, DO-160E, MIL-E-5272C, MIL-E-5400H, and ARINC Characteristic 547 & 710.

Click Here for Data Sheet

Specifications

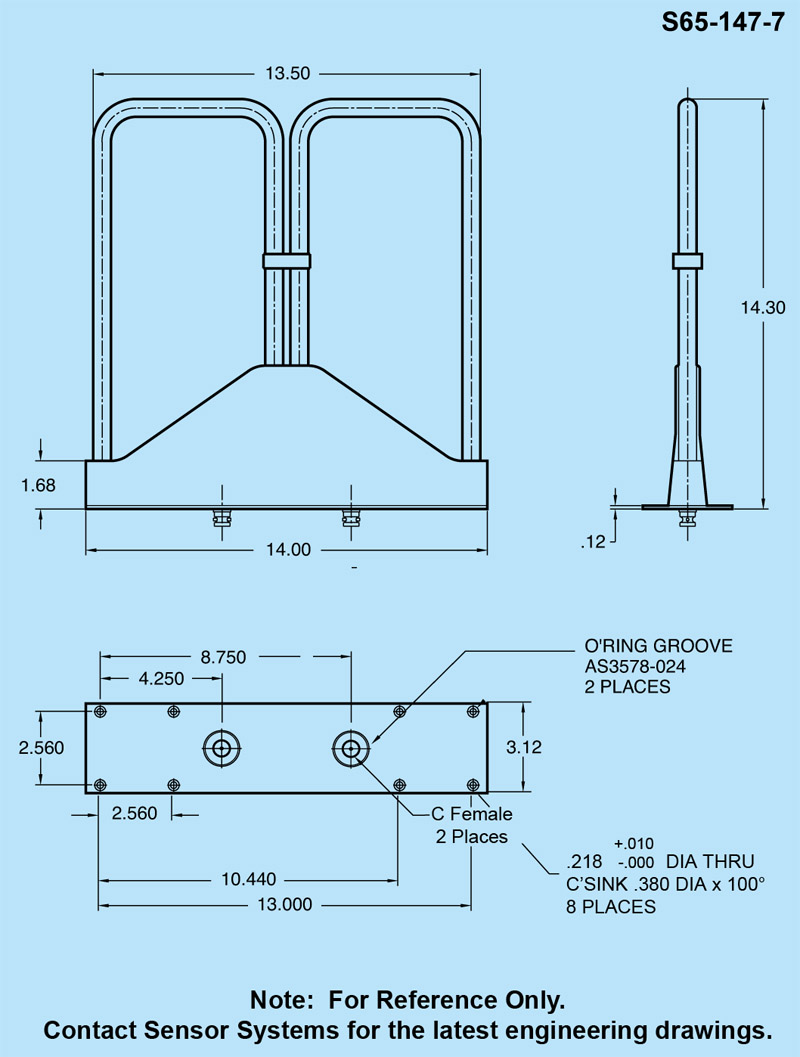

Outline Drawings
Performance
