Satcom Iridium Antenna

zoom

Satcom Iridium Antenna

Frequency Range : 1616 MHz to 1626.5 MHz
Part Number : S67-1575-409
Satcom Iridium Antenna

S67-1575-409: TSO-approved Iridium antenna covers the Iridium frequency range of 1616 MHz to 1626.5 MHz for world-wide Iridium system operations. Supports FOI (FANS over Iridium) and ADS-B over Iridium. The S67-1575-409 is approved as Iridium Compatible Equipment (ICE). The low-profile, molded radome material and design insures superior protection against lightning strikes, rain and ice. Qualified for high-speed military aircraft as well as ARINC applications.

FEDERAL & MILITARY SPECS: TSO-C159a, DO-160D/E, DO-262A, MIL-DTL-5541, MIL-HDBK-5400, MIL-STD-810.

Click Here for Data Sheet

Description

S67-1575-409: TSO-approved Iridium antenna covers the Iridium frequency range of 1616 MHz to 1626.5 MHz for world-wide Iridium system operations. Supports FOI (FANS over Iridium) and ADS-B over Iridium. The S67-1575-409 is approved as Iridium Compatible Equipment (ICE). The low-profile, molded radome material and design insures superior protection against lightning strikes, rain and ice. Qualified for high-speed military aircraft as well as ARINC applications.

FEDERAL & MILITARY SPECS: TSO-C159a, DO-160D/E, DO-262A, MIL-DTL-5541, MIL-HDBK-5400, MIL-STD-810.

Click Here for Data Sheet

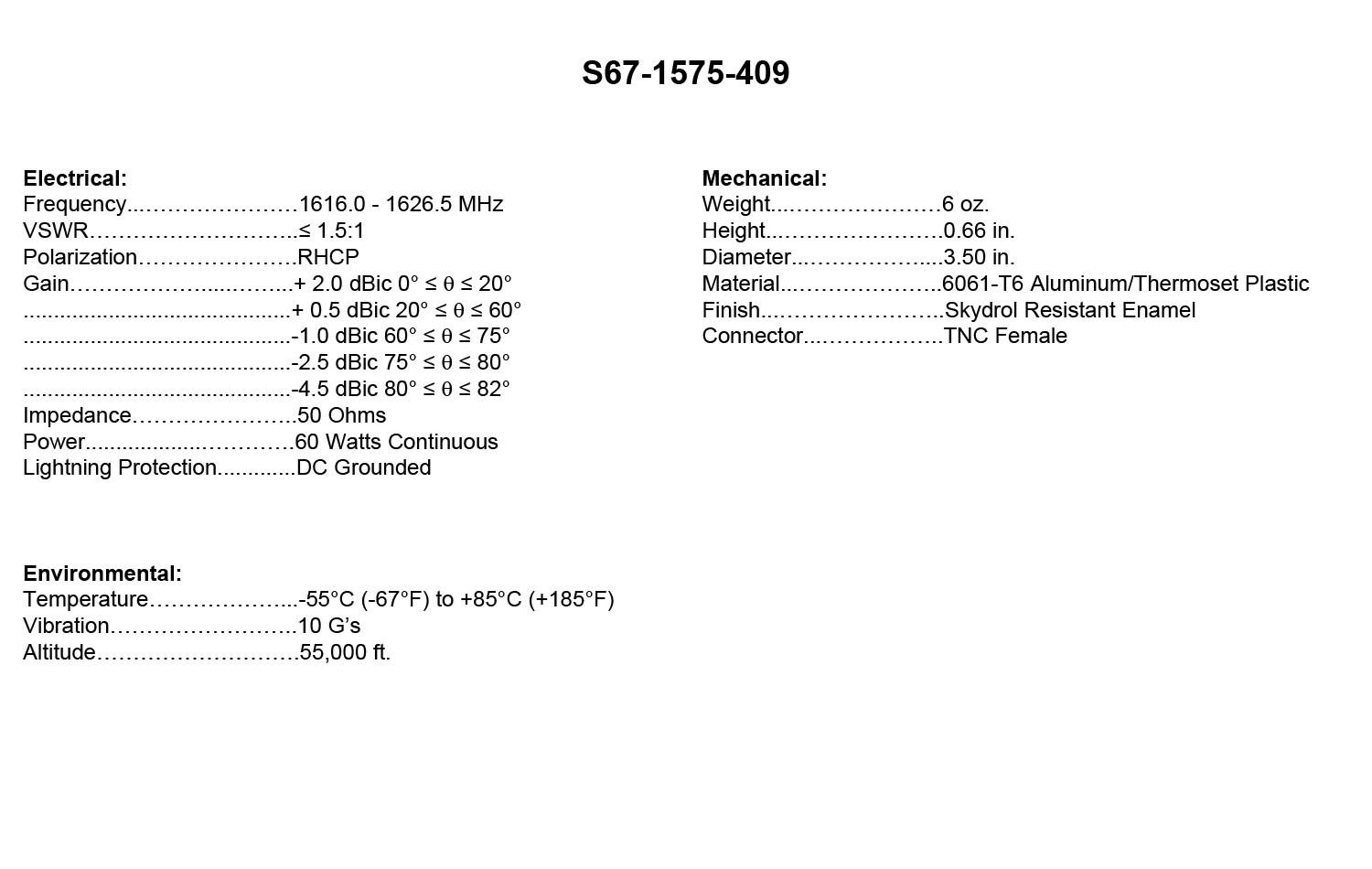

Specifications

Outline Drawings
Performance
