S-Band Antenna

Frequency Range : 2200 MHz to 2500 MHz
Part Number : S65-5366-71S
S-Band Antenna

S65-5366-71S: This aluminum blade antenna was designed for spread spectrum local area network communication utilizing IEEE 802.11. The antenna features a 4-hole base plate design that provides a common installation for commercial airline application.
The antenna is DC grounded to protect from lightning and is hermetically sealed for a long service life.
Federal & Military Certifications: MIL-A-25708A, MIL-A-25730B, MIL-E-5272C, MIL-E-5400, MIL-STD-810B and FAA PMA 737.

Click Here for Data Sheet

Description

S65-5366-71S: This aluminum blade antenna was designed for spread spectrum local area network communication utilizing IEEE 802.11. The antenna features a 4-hole base plate design that provides a common installation for commercial airline application.
The antenna is DC grounded to protect from lightning and is hermetically sealed for a long service life.
Federal & Military Certifications: MIL-A-25708A, MIL-A-25730B, MIL-E-5272C, MIL-E-5400, MIL-STD-810B and FAA PMA 737.

Click Here for Data Sheet

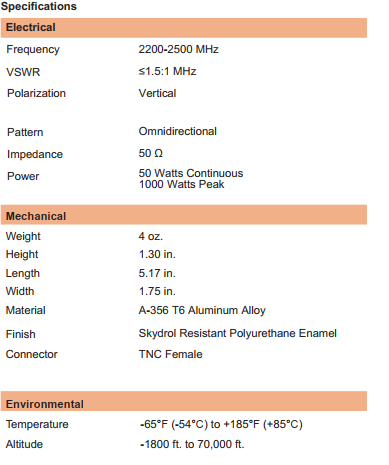

Specifications

Outline Drawings
Performance
