UHF/Satcom/GPS/Iridium Antenna
UHF/Satcom/GPS/Iridium Antenna

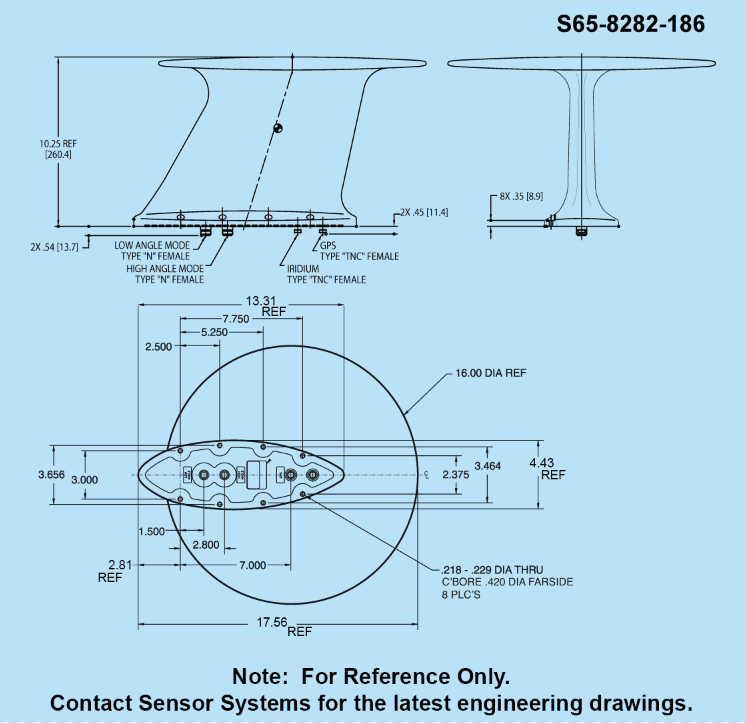

S65-8282-186: UHF Satellite communications antenna provides four functions from a single, low-pro-file footprint. The traditional low-angle, vertically-polarized blade section is used for air-to-air and air-to-ground UHF communications. The high-angle RHCP element is designed for UHF Satcom. The broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith. An L 1/L2 GPS with a 26.5dB amplifier is housed in the radome along with an Iridium element for voice and data applications. Each antenna section has separate connectors for ease of installation and to eliminate the requirement for diplexers.
The S65-8282-186 is approved as Iridium Compatible Equipment (ICE).
NSN: 5985-01-597-0009.
FEDERAL & MILITARY SPECS: MIL-HDBK-5400, MIL-STD-810, MIL-STD-877.
S65-8282-186: UHF Satellite communications antenna provides four functions from a single, low-pro-file footprint. The traditional low-angle, vertically-polarized blade section is used for air-to-air and air-to-ground UHF communications. The high-angle RHCP element is designed for UHF Satcom. The broad cardioid pattern provides coverage for up to plus or minus 35 degrees from zenith. An L 1/L2 GPS with a 26.5dB amplifier is housed in the radome along with an Iridium element for voice and data applications. Each antenna section has separate connectors for ease of installation and to eliminate the requirement for diplexers.
The S65-8282-186 is approved as Iridium Compatible Equipment (ICE).
NSN: 5985-01-597-0009.
FEDERAL & MILITARY SPECS: MIL-HDBK-5400, MIL-STD-810, MIL-STD-877.
