VHF/UHF Digital Antenna
VHF/UHF Digital Antenna

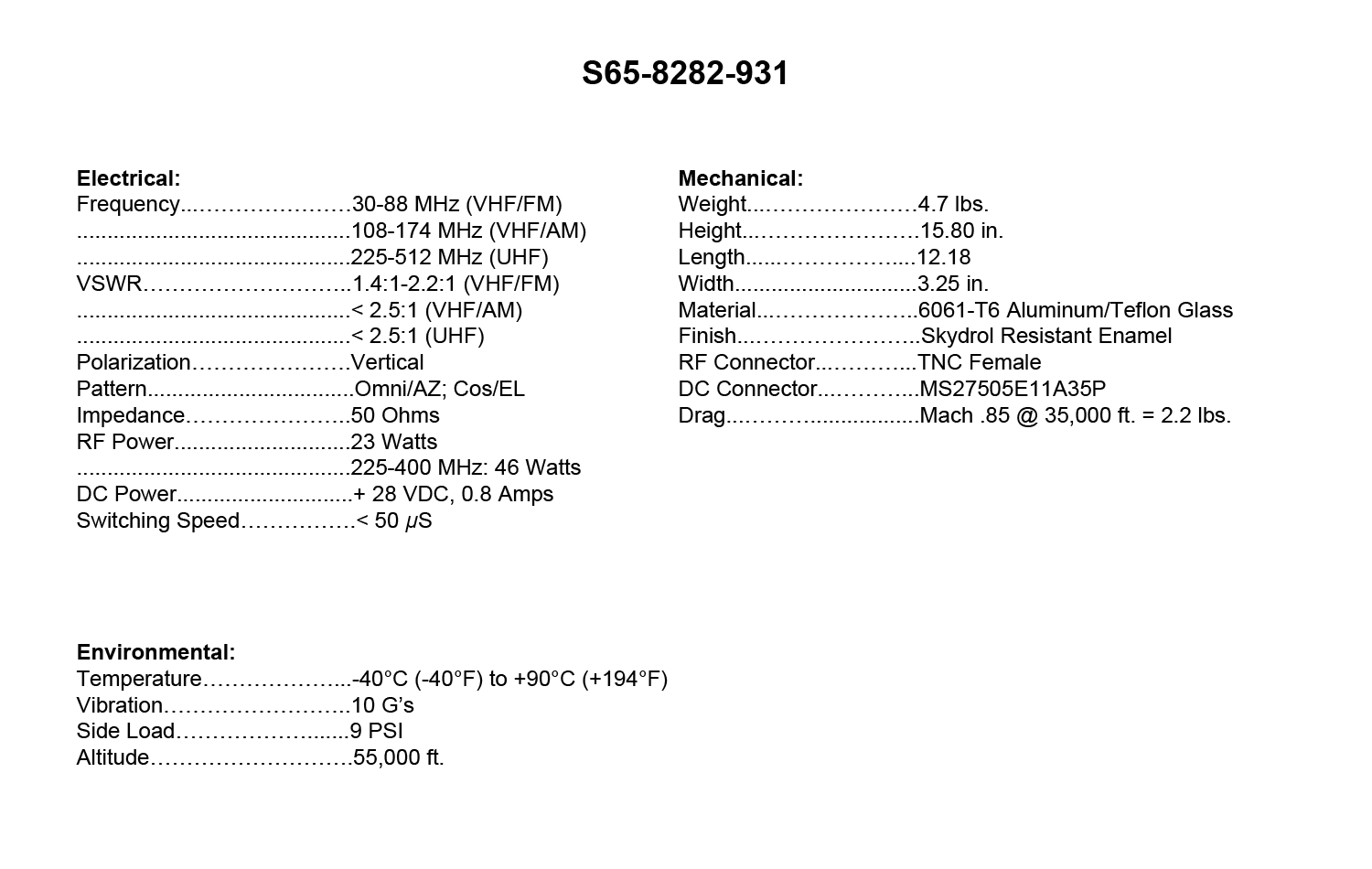

S65-8282-931: Representing current state-of-the-art in digitally-tuned antenna technology, the S65-8282-931 provides high-gain VHF/UHF performance in a low-drag, swept-blade design. Fast, automatic frequency tuning is accomplished using advanced microprocessor technology providing switching speeds of less than 50 microseconds, supporting frequency-hopping, secure voice communications systems. The S65-8282-931 is tunable from 30-512 MHz. The design incorporates a microprocesser-based logic controller and a switching power supply in the base of the antenna assembly.Frequency setting information is transmitted directly to the antenna from the radio via a multi-pin connector. Tuning of the inductor circuits is achieved by the logic control board via PIN diodes. The antenna is compatible with Collins ARC-210,
Raytheon ARC-231 and Rohde & Schwarz M3AR 6000 radios.
FEDERAL & MILITARY SPECS: MIL-HDBK-5400, MIL-STD-810.
