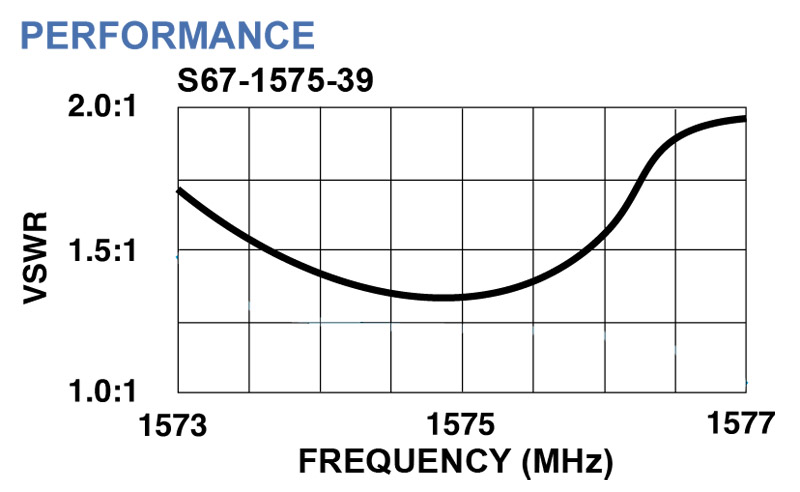

S67-1575-39: GPS L1 Antenna operates at 1575.42 MHz. Spherical radius molded radome provides enhanced protection against rain, ice. Application for airborne, marine, ground vehicles and manpack installation. Internal 26 dB gain amplifier operates in a voltage range of +4 to +24 VDC which is provided through the coaxial connector.

NSN: 5985-01-470-8616 (green);  5985-01-441-5048 (white)

FEDERAL & MILITARY SPECS: FAA TSO C115a and C129, DO-160C, MIL-STD-810, MIL-C-5541, MIL-E-5400.
